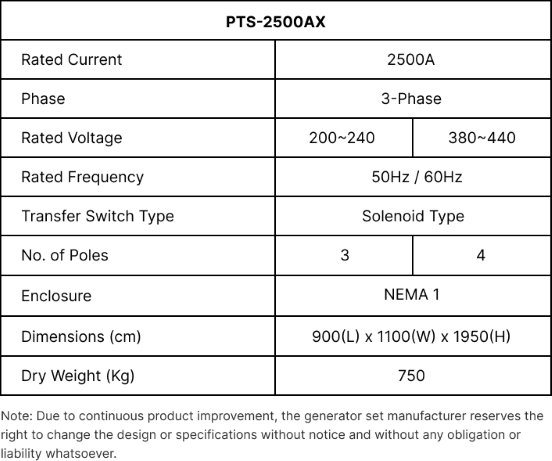

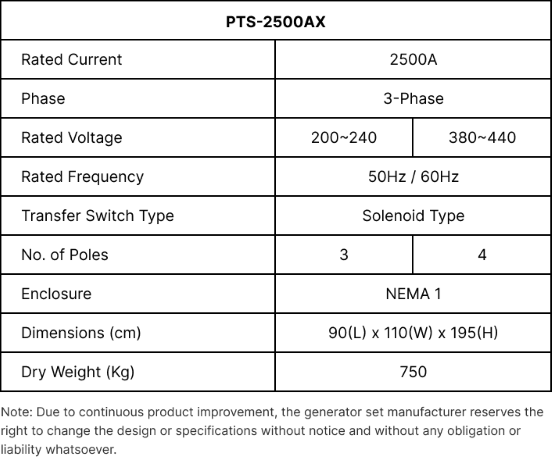

PTS-2500AX

Automatic Transfer Switch

Description

Automatic Transfer Switches (ATS) made by Powercity are designed in conformance with European Standards and are certified by independent testing laboratory. Tested in conformity with European Standards EN 55011:2007 and EN 61000-4 and certified by SAPO Certification and Testing Laboratory Limited of United Kingdom with certificate number SP1001GZ1111414 and SP1001GZ1111415. An ATS is the component in an emergency and standby power system that transfers power from the “normal” power source to the alternate power source when the “normal” source of power fails. An automatic transfer switch transfers power between two power sources without requiring the intervention of an operator. Article 7.0.1.6 of the Philippine Electrical Code (PEC) requires the use of ATS to protect your generator, your home or business and grid supply linemen.

Measure two source multi-parameters:

AC Line-Line voltage of #1

AC Line-Nature voltage of #1

AC Frequency of #1

AC Line-Line voltage of #2

AC Line-Nature voltage of #2

AC Frequency of #2

Load Line Current

Load Active power (kW) of #1, 2

Load apparent power (kVA) of #1, 2

Power Factor

Over Voltage

Under Voltage

Over Frequency

Under Frequency

Miss Phase

Over Current

Compatible to multi-type of automatic transfer switches:

no OFF position (two segments kind), such as SOCOMEC VS switch;

one OFF position (three segments kind), such as SOCOMEC VE switch;

two OFF position, such as the ATS composed of two circuit breakers or two contacts;

Compatible to automatic switching of two utility source, two generating power or between one utility source and one generating power.
Microprocessor based design, LED display, tactile key operation.
Also, may suit to two source single phase AC voltage system or two source 3-phase 3 wires AC voltage system by simply settings (note: 3-phase 3 wires system will be offered specially).
Configurable priority of supply able to set I# supply priority or II# supply priority or NONE supply priority.
Function of start generator.
Function of auto transfer when one switch closing failures and another works well.
Auto/Manual button available, mandatory opening or closing switch in manual mode.
Password to prevent the miss operation of non-professionals.
Function of re-closing to prevent instantaneous power off aiming at switch which opening as voltage being low.
Pulse output closing and Opening signal (up to 10 seconds), output auto shutoff after switching is done.
Transfer rest delay time is programmable.
Parameters can be set in site or in monitor center and cannot lose even power off.
Easy to replace with a plug-in type socket at the back of the control module.
