Marine Engines

Reliable and fuel-efficient marine engines designed for dependable performance in demanding marine applications. Built for durability, low noise, and smooth operation, they are ideal for propulsion and marine generator sets.

Marine Engines

PPS-80R

Description

RAYWIN 4E38T marine diesel engine adopts turbocharged design. Its BOSCH common-rail version is RCD2-certified with power range 63~74kW.And Inline pump system power range is
55~90kw,Stanadyne fuel system cover 55~65kw. Stanadyne rotary fuel pump or Weifu in-line pump and BOSCH common-rail delivers 10% lower fuel consumption than competitors, featuring high reliability and low operating cost. Compact and lightweight, it meets CE standards with long maintenance intervals. Same-side service layout simplifies maintenance.

Available options: dual belts, belt guards, 24V system, two cooling & fuel systems, exhaust-water mixer. Safe, robust and fuel-efficient, it serves as main propulsion power for fishing boats, cargo boats, yachts, traffic boats and working boats.

  • Turbo-charged engine with conventional structure, no emission certification. The common-rail series has obtained RCD2 certification.
  • Engine power range of this series: 55kW ~ 90kW.
  • Optional Stanadyne rotary fuel pump and Weifu in-line fuel pump. Fuel consumption is 10% lower than comparable competing products. It delivers high reliability while significantly reducing end-user operating costs.
  • Adopting advanced design, compact structure and light weight. Complies with CE standards and features long maintenance intervals.
  • Same-side service design for convenient later-stage maintenance.
  • Multiple configuration options: dual belts, belt guards, 24V system, two different cooling systems and fuel systems. exhaust-water mixers are also available.

  • Compatible with 4E38T07/FW high-speed main engine, model MA142A features a reduction ratio of 2.52:1, rated input speed 1500-2500 r/min and rated transmission capacity up to 0.030kW/(r·min⁻¹). The unit fully complies with industry standard CB/T 3003-2011 for marine medium-speed diesel engine gearboxes, certified by CCS (China Classification Society). Certifications from international classification societies including LR, BV, DNV-GL are available upon request.
  • Constructed with thick cast iron housing and high-precision quenched helical gears, it achieves transmission efficiency exceeding 96%. Hydraulic clutch ensures smooth shifting with low noise and low vibration, and multi-angle installation is supported. Ideal for patrol boats, fishing vessels, passenger transport boats and other craft. Modular design enables easy disassembly and maintenance, delivering reliable long-term operation and superior fuel efficiency.

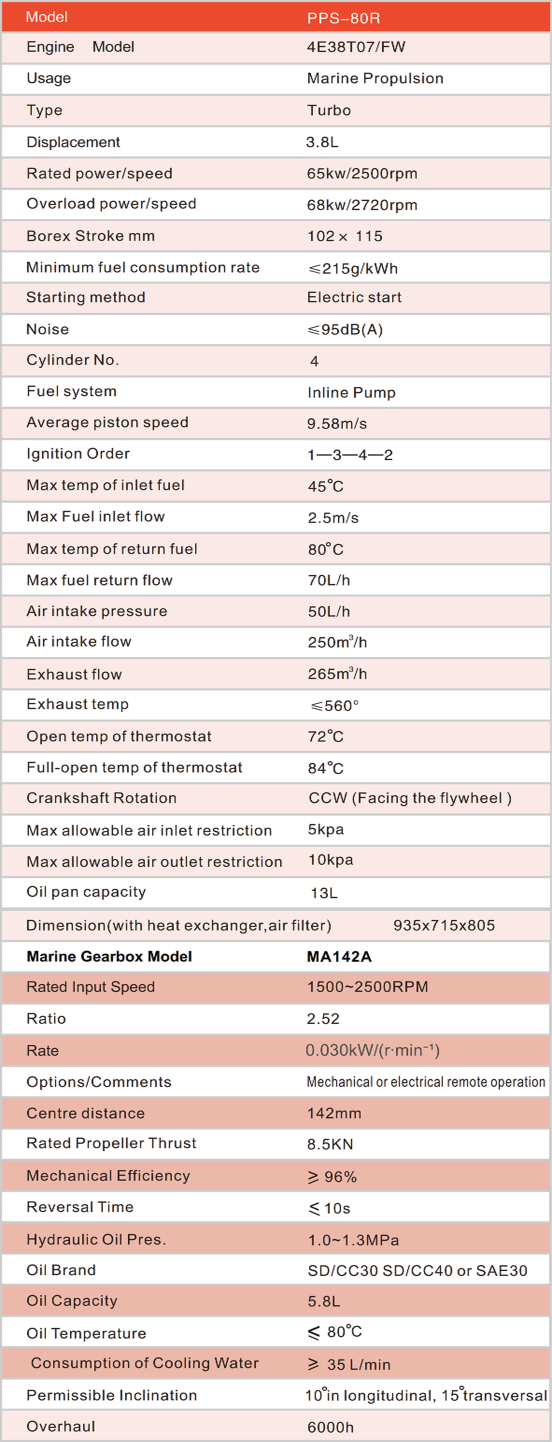

Product Data Sheet
