Soundproof And Weatherproof AC Diesel Generators

Our generator is a complete and standalone generating set. The alternator and engine are set on a common skid base and enclosed in a solid steel, weatherproof enclosure (weatherproof-type units).

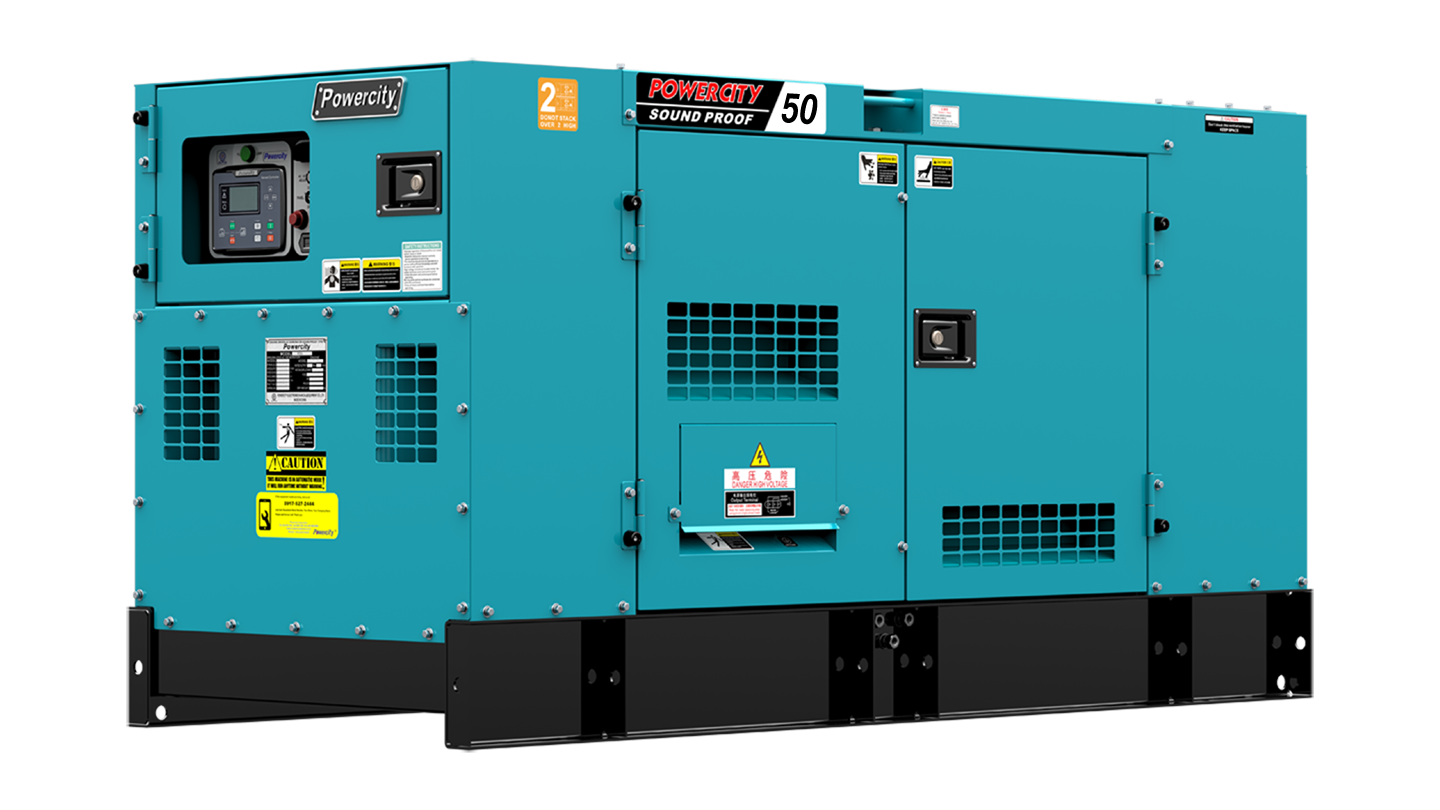

Soundproof And Weatherproof AC Diesel Generators

PDG-50SSY

Slide 1
Thumbnail 1

Description

  • Compact designed soundproof and weatherproof canopy.
  • All canopy parts are designed with modular principles.
  • Detachable designed doors provide most accessible for maintenance and repairs.
  • All metal canopy parts are factory rustproof using special powder paint coating.
  • Single point lifting eye designed for easy mobilization.
  • Transparent glass control panel viewing window.
  • Optimized ventilation design makes generator ventilation well.
  • Large capacity designed of fuel tank

  • Heavy duty diesel engine.
  • Vertical inline, Four stroke, water cooled.
  • Direct injection fuel system.
  • 24 VDC starter and charge alternator.
  • Replaceable fuel filter, oil filter and dry element air filter.
  • Cooling radiator and fan.
  • Industrial capacity exhaust silencer.
  • Built in vibration isolators.
  • Closed crankcase ventilation system with filter to eliminate engine room contamination.
  • With Turbo-charged.

  • Over-rated, brushless, rotating exciter with solid state AVR.
  • Class H winding insulations provide high temperature resistance.
  • Standard degree of protection IP21.
  • Self exciting and self regulating.
  • Factory impregnated epoxy varnished.
  • Heavy duty steel frame cast-iron cover.
  • Stator grease insulation covered.
  • Flywheel location cooling fan.

  • The complete generator set is mounted as a whole on a heavy duty fabricated steel base frame.
  • Anti-vibration pads are fixed between the engine and alternator footings and the base frame.
  • Base frame with integrated fuel tank.
  • Cylindrical fuel gauge, low stock level switch and drain plug on the fuel tank.
  • Provide external fuel connection fittings for bigger fuel reserve tank.
  • Outside Oil drain plug designed easy access for change oil maintenance.
  • Base frame are factory rustproof using special powder paint coating.

  • Powercity’s designed integrated artificial intelligence controller.
  • The keyless module manual or automatic start and stop the generator.
  • Automatic shutdown on abnormal conditions and indicates service affecting faults.
  • Compatible with most standard ATS.
  • LED digital metering shows line voltage, current, frequency, operating hours and battery volts.

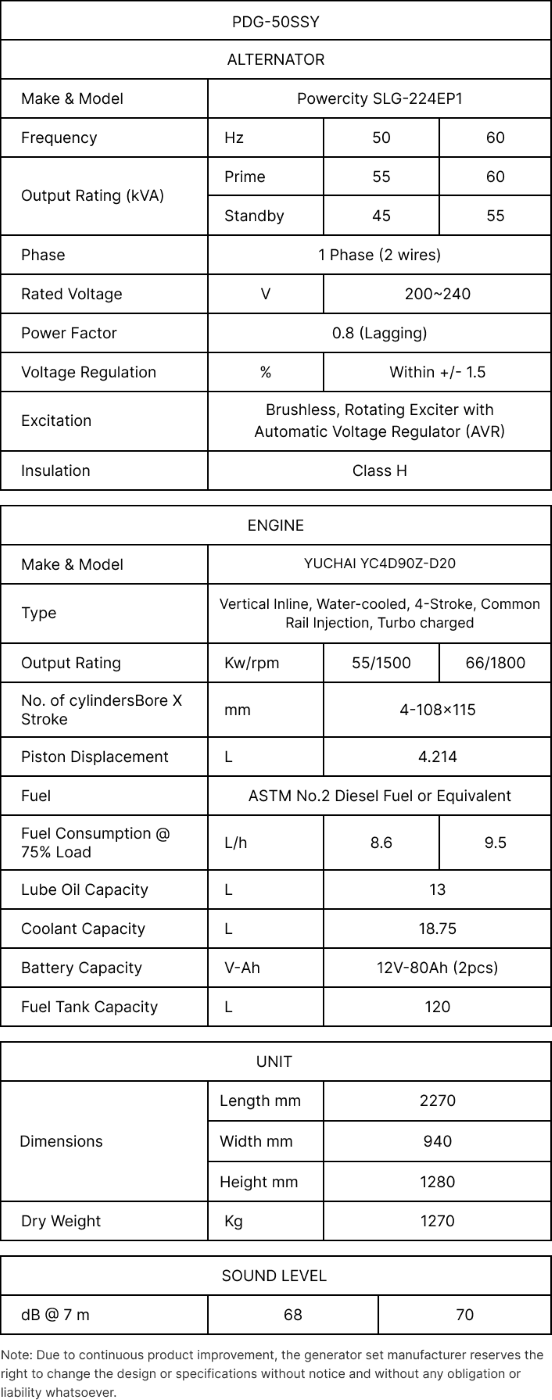

Product Data Sheet
