Automatic Transfer Switch

Automatic Transfer Switches (ATS) made by Powercity are designed in conformance with European Standards and are certified by independent testing laboratory.

Automatic Transfer Switch

PTS-630AX

Slide 1
Thumbnail 1

Description

Automatic Transfer Switches (ATS) made by Powercity are designed in conformance with European Standards and are certified by independent testing laboratory. Tested in conformity with European Standards EN 55011:2007 and EN 61000-4 and certified by SAPO Certification and Testing Laboratory Limited of United Kingdom with certificate number SP1001GZ1111414 and SP1001GZ1111415. An ATS is the component in an emergency and standby power system that transfers power from the “normal” power source to the alternate power source when the “normal” source of power fails. An automatic transfer switch transfers power between two power sources without requiring the intervention of an operator. Article 7.0.1.6 of the Philippine Electrical Code (PEC) requires the use of ATS to protect your generator, your home or business and grid supply linemen.

  • System type can set for: Mains (1#) & Gens (2#), Gens (1#) & Mains (2#), Gens (1#) & Gens (2#).
  • The LCD 128×64, take backlit, two languages (simplified Chinese and English) display, for simple operation.
  • Measure and shows 2-way 3 phase voltage and frequency parameters.
  • With over voltage, under voltage, loss of phase, reverse phase sequence, over & under frequency functions.
  • With the auto/manual operation mode. In manual mode, may enforce switch to close or open.
  • All parameters can be set in the field.
  • Can be set as on-load/off-load mode in the field for start genset.
  • Can make switch to re-close when switch is opened accidentally or make switch to power off then re-close.
  • Can start or stop genset automatic on scheduler. Also be set as single time operation, monthly or weekly, and whether with load or not.
  • Can control two gensets to work in cycle, even the genset running time and interval rest time can be set.
  • Widely range of DC power supply. Max.80V DC input can be endured in an instant, or be supplied via HWS560 module (input AC 85V~560V, output DC 12V).
  • Bigger space between connecting terminals of AC input. Max.625V input voltage.
  • With standard insulated RS485 communication interface port. With “remote controlling, remote measuring, remote communication” function by the ModBus communication protocol.
  • Can check the status of controller (including of switch auxiliary output, over-voltage, and under-voltage etc.).
  • Suitable for various AC systems (3-phase 4-wires, 3-phase 3-wires, single-phase 2-wires, and 2-phase 3-wire).

  • Weatherproof enclosure & canopy.
  • Fabricated with the state of art CNC machine.
  • Extraordinary Modularized ATS design.
  • All metal parts are factory rustproof using special powder paint coating.
  • Fiber Glass control panel viewing window.
  • Superior serviceability & Simple maintenance.
  • Access door for control operation and maintenance.
  • Metal enclosure with lock system NEMA 3R.
  • With electrical diagram sticker for the technician reference.
  • Fusible protection for critical fault.
  • Provision grounding terminal.
  • Provision remote terminal, for the remote access.
  • Solenoid type transfer switch.
  • Manual transfer switch capability.
  • Built-in automatic battery charger.
  • With Normal / Commercial power and Emergency / Genset indicator light.
  • Design for easy installation.

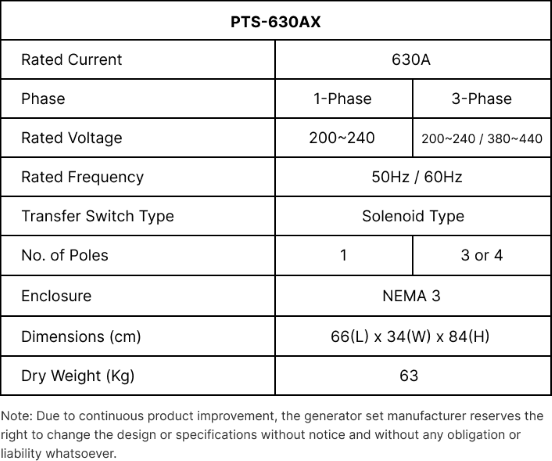

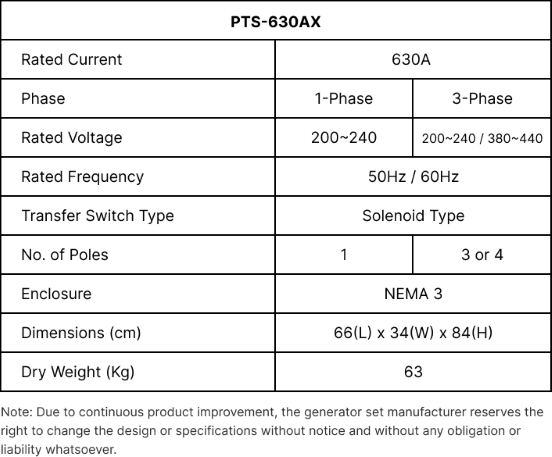

Product Data Sheet
