Automatic Transfer Switch

Automatic Transfer Switches (ATS) made by Powercity are designed in conformance with European Standards and are certified by independent testing laboratory.

Automatic Transfer Switch

PTS-4000AM

Slide 1
Thumbnail 1

Description

Automatic Transfer Switches (ATS) made by Powercity are designed in conformance with European Standards and are certified by independent testing laboratory. Tested in conformity with European Standards EN 55011:2007 and EN 61000-4 and certified by SAPO Certification and Testing Laboratory Limited of United Kingdom with certificate number SP1001GZ1111414 and SP1001GZ1111415. An ATS is the component in an emergency and standby power system that transfers power from the “normal” power source to the alternate power source when the “normal” source of power fails. An automatic transfer switch transfers power between two power sources without requiring the intervention of an operator. Article 7.0.1.6 of the Philippine Electrical Code (PEC) requires the use of ATS to protect your generator, your home or business and grid supply linemen.

  • Weatherproof enclosure & canopy.
  • Fabricated with the state of art CNC machine.
  • Extraordinary modularized ATS design.
  • All metal parts are factory rustproof using special powder paint coating.
  • Superior serviceability & simple maintenance.
  • Access door for control operation and maintenance.
  • Metal enclosure with lock system NEMA 1.
  • With electrical diagram sticker for the technician reference.
  • Provision grounding terminal.
  • Provision remote terminal, for the remote access.
  • Schneider ATMT Air Circuit Breaker type ATS w/ mechanical interlock.
  • Manual transfer switch capability.
  • Built-in automatic battery charger.

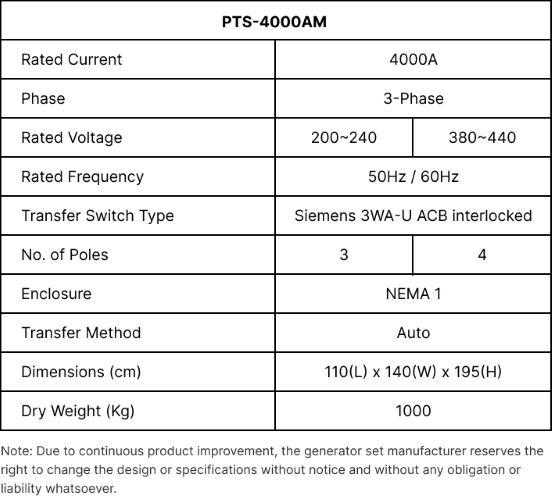

Product Data Sheet
