Marine Generator
The PMG-30SR is powered by 2.4 liter turbocharged, 4-cylinder diesel engine by Raywin Powertrain Technology. A compact and light weight engine optimized for low noise and vibration suitable for boats and yachts.
Marine Generator

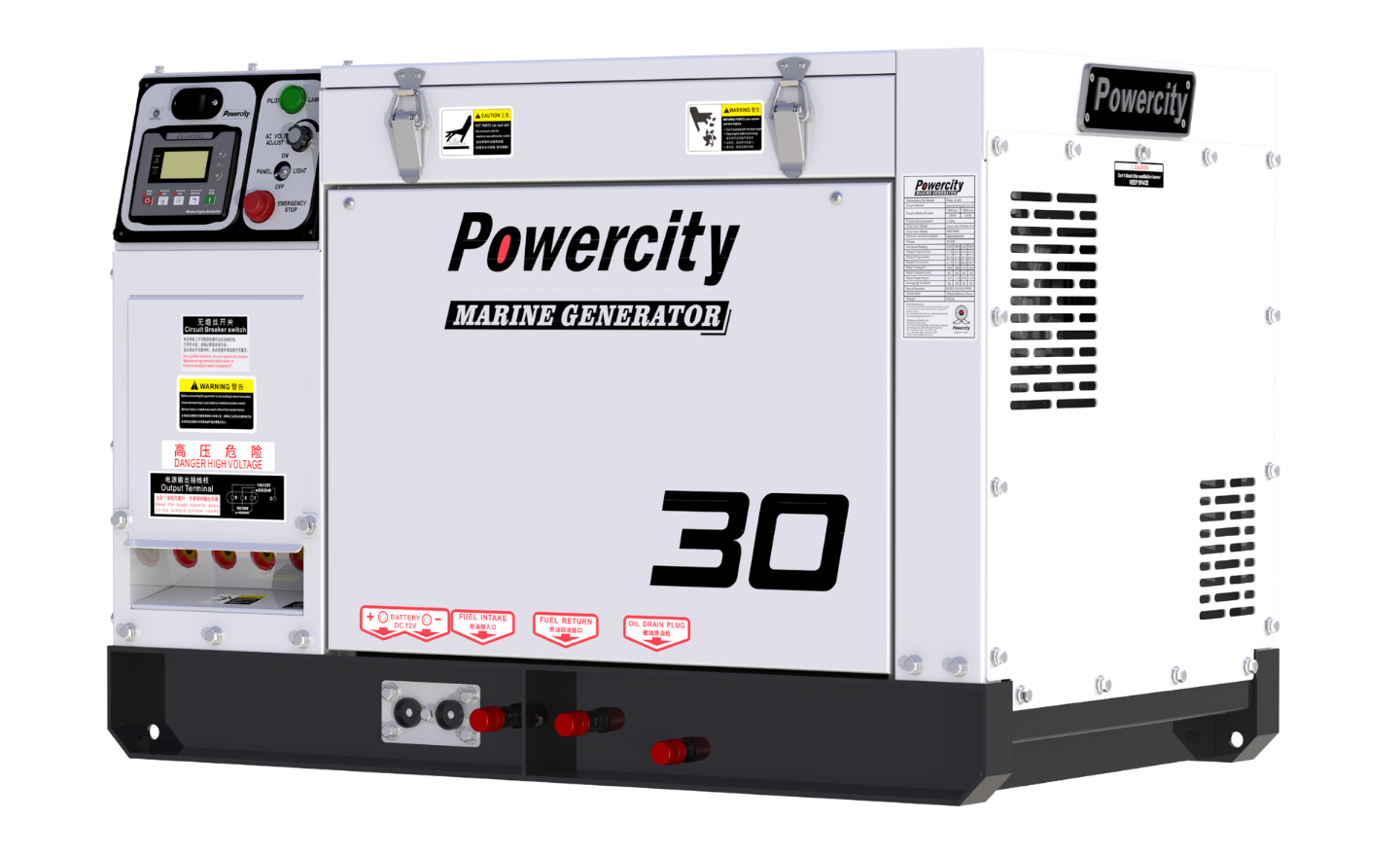

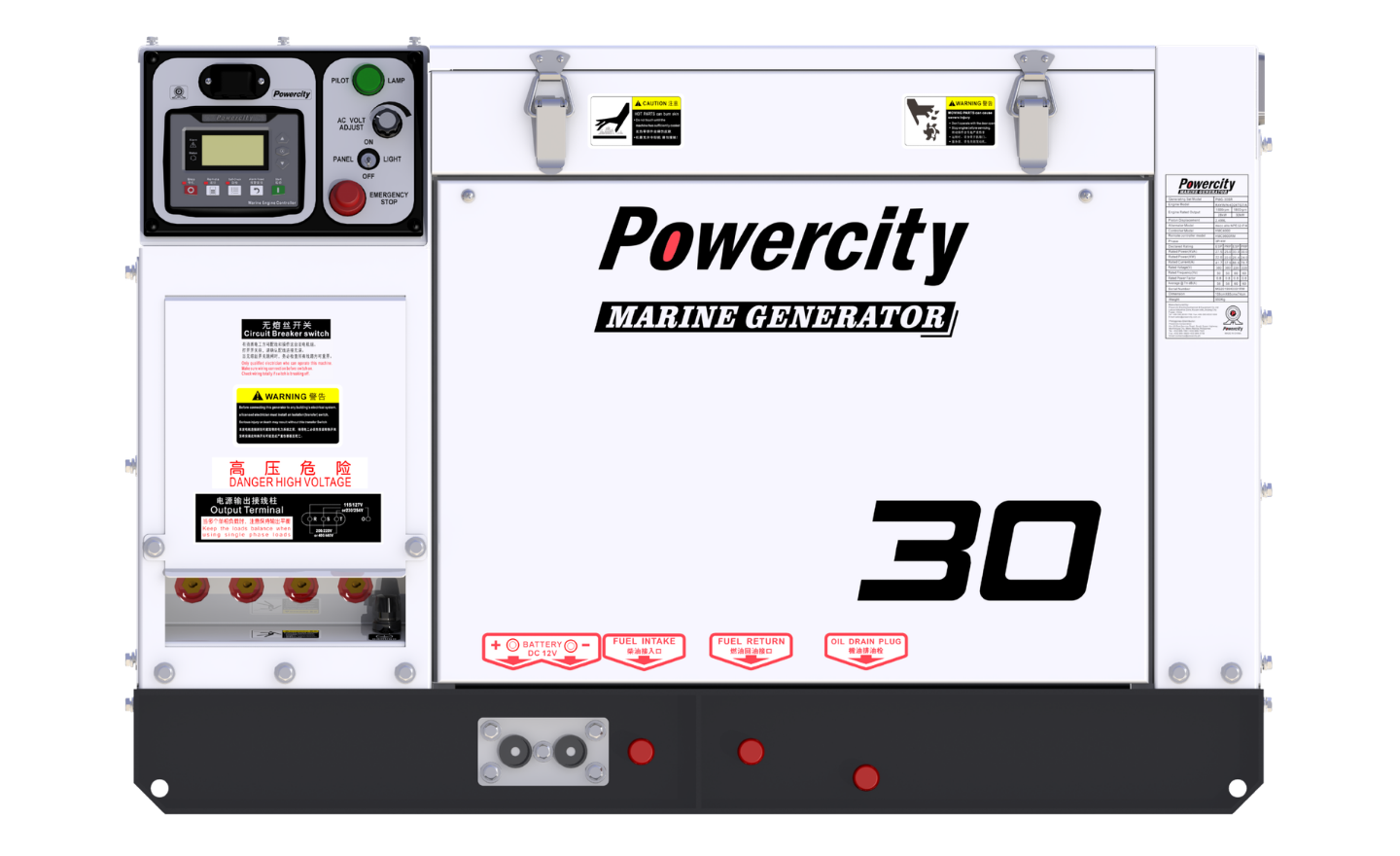

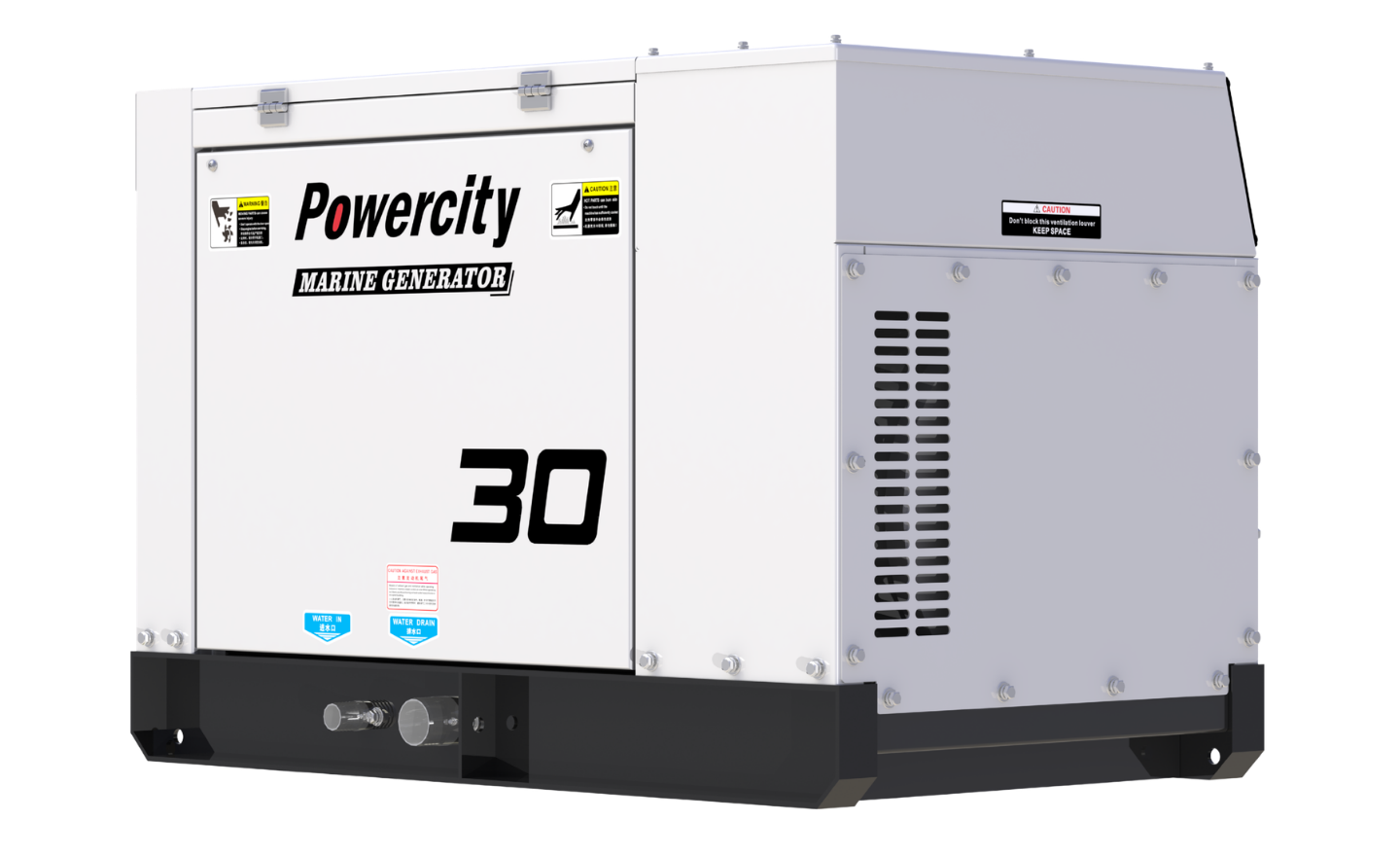

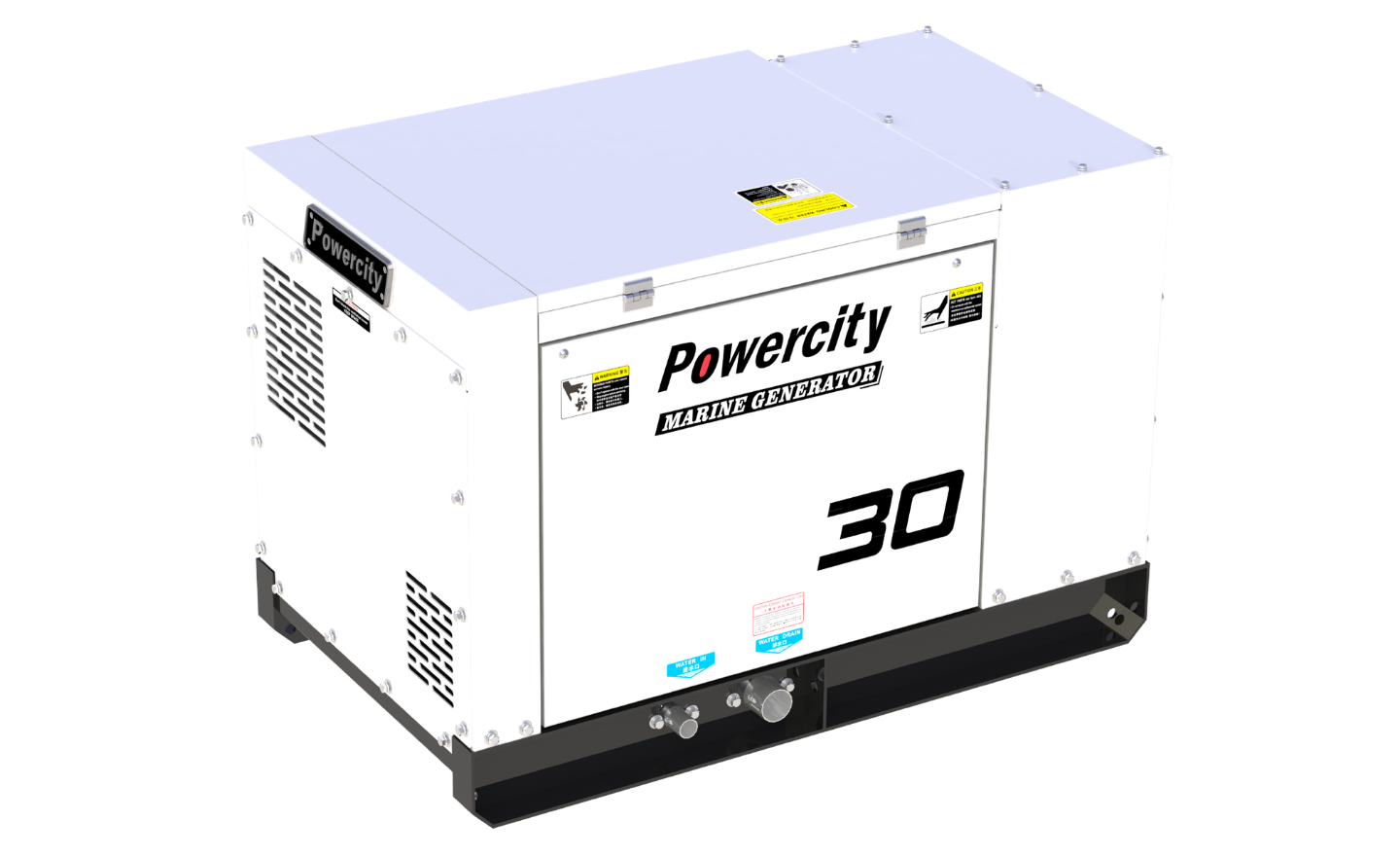

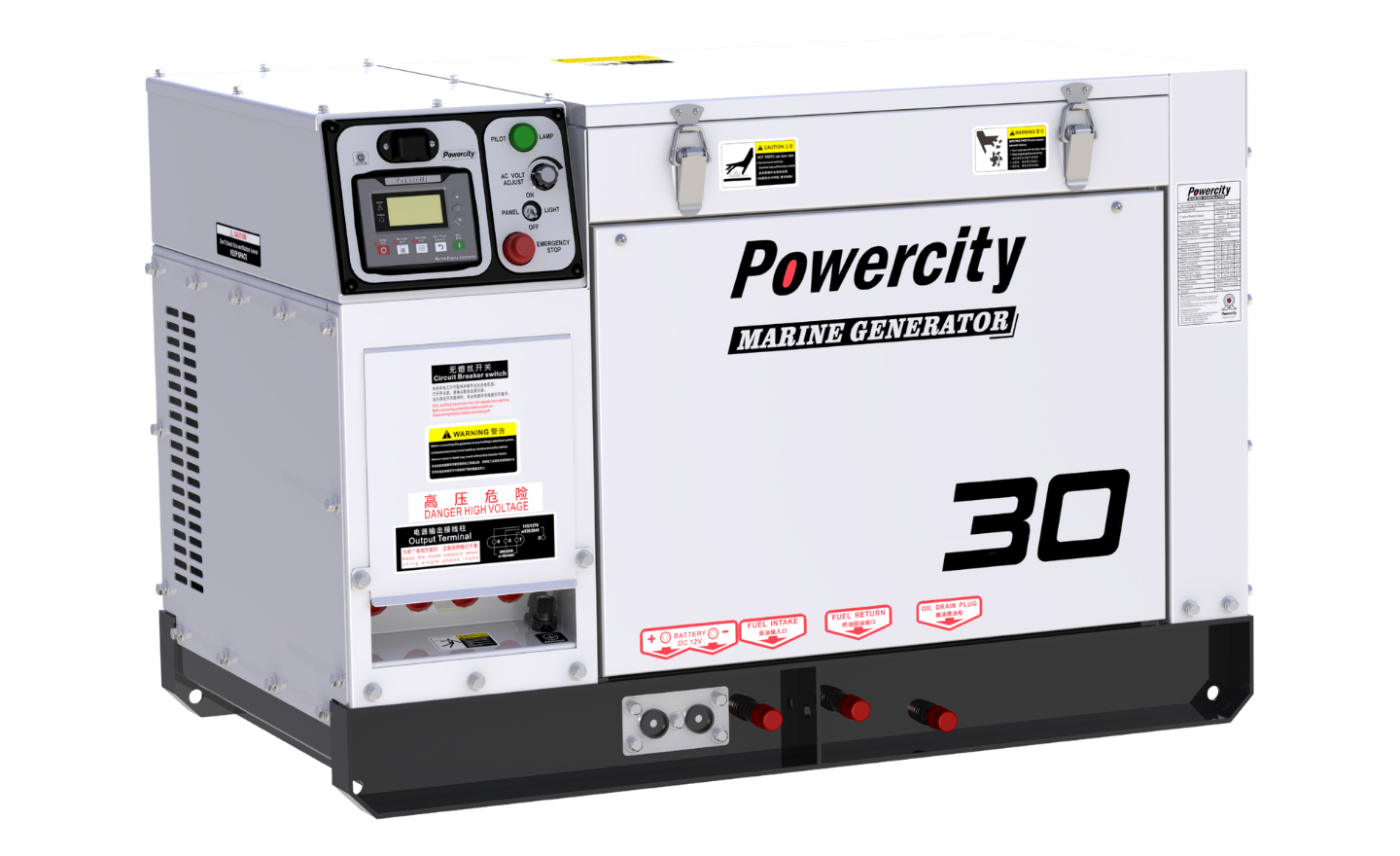

PMG-30SR
Description
The PMG-30SR is powered by 2.4 liter turbocharged, 4-cylinder diesel engine by Raywin Powertrain Technology. A compact and light weight engine optimized for low noise and vibration suitable for boats and yachts. Engine is equipped with sea water pump, heat exchanger and water-cooled exhaust pipe to reduce engine room temperature. Meets EU stage IIIA emission level.
![](http://powercity.ph/wp-content/uploads/2024/03/PMG30SR-Specifications.png)
The PMG-30SR is powered by 2.4 liter turbocharged, 4-cylinder diesel engine by Raywin Powertrain Technology. A compact and light weight engine optimized for low noise and vibration suitable for boats and yachts. Engine is equipped with sea water pump, heat exchanger and water-cooled exhaust pipe to reduce engine room temperature. Meets EU stage IIIA emission level.
The PMG-30SR is fitted with compact marine alternator by Mecc Alte. The alternator is designed in conformity to standards CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, NF 51.111, CAN/CSA-C22.2, NEMA MG1-2011, and ISO 8528-3. All windings are 2/3 pitch to eliminate harmonics and to ensure a clean voltage waveform. Contained in an IP23 enclosure.
The PMG-30SR is controlled by digital and intelligent marine engine controller. It is also capable of network technology using RS485 communication system. The LCD with backlight can show selectable languages—English and Chinese. Override mode function that only over speed shutdown and emergency shutdown can stop the engine. Shows 3-phase voltage, current, power and frequency. Precision measure and display of engine parameters: Coolant Temp (°C/°F), Oil Pressure (kPa/psi/bar), Fuel Temp (°C/°F), Speed (r/min), Battery Voltage (V), Charger Voltage (V), Run Hours, Start Time Accumulation, Electric Energy Accumulation. Maximum of 99 event logs are automatically stored. Waterproof IP65 rating.
Comes with 2 years or 2,000 run hours limited warranty whichever comes first.
