Soundproof And Weatherproof AC Diesel Generators

Soundproof And Weatherproof AC Diesel Generators

PDG-250SC-CA

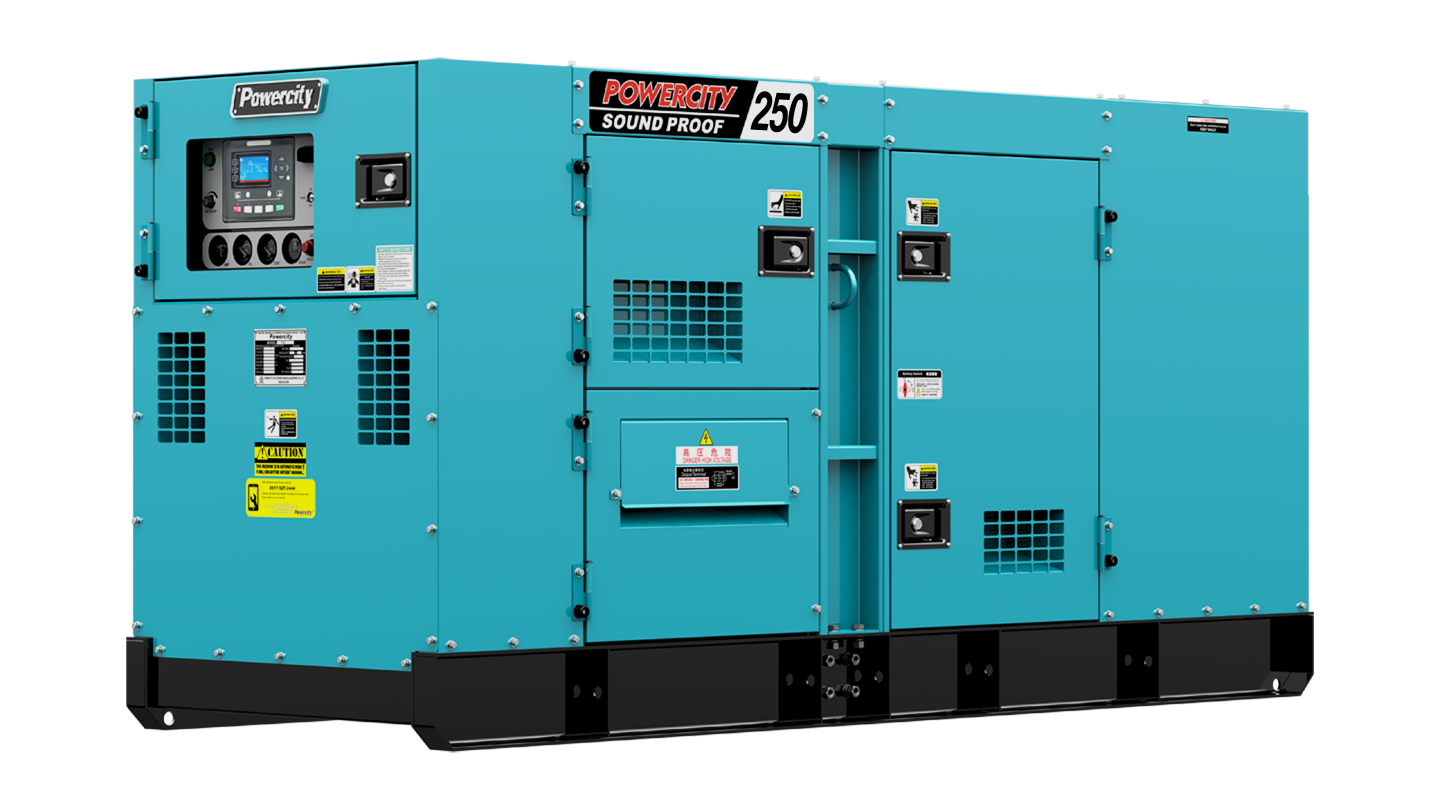

Slide 1
Thumbnail 1

Description

  • Compact designed soundproof and weatherproof canopy .
  • All canopy parts are designed with modular principles.
  • Detachable designed doors provide most accessible for maintenance
    and repairs.
  • All metal canopy parts are factory rustproof using special powder
    paint coating.
  • Single point lifting eye designed for easy mobilization.
  • Transparent glass control panel viewing window.
  • Optimized ventilation design provides better generator cooling.
  • Provision for external fuel tank for extended operation through
    fuel intake & return valves.

Prime Power kVA 250
Standby Power kVA 275
Power Factor 0.8
Rated Voltage V 400/230 or 380/220
Speed rpm 1500
Frequency Hz 50
Fuel Consumption @100% load L/h 53
Fuel Consumption @75% load L/h 39
Fuel Consumption @50% load L/h 27
Fuel Consumption @25% load L/h 15

Make & Model POWERCITY SLG-274k
Rated Voltage V 400/230 or 380/220
No. Of Phases – Wires 3 Phase – 4 Wires
Type Brushless, Rotating Self-Exciter (with A. V.R)
Prime Power KVA 250
Frequency Hz 50
Insulation Class H
Protection lp23
Voltage Regulation % Within +/-1

Brand CUMMINS
Model 6LTAA8.9-G2
Standby Power (Speed) kW (rpm) 240 (1500)
Type Diesel Engine, 4-Stroke
Injection Direct-injected
Governor Electrical
Compressipon Ratio 16.6 : 1
Aspiration System Turbo-charged
Stater System Electric Motor With Battery
Cooling System Watercooled With Radiator and Fan
Lube Oil Capacity L 27.6
Coolant Capacity L 41

Dimensions (Silent Type) Length mm 3800
Width mm 1250
Height mm 1800
Dry Weight Kg 2900
Fuel Tank Capacity (Base Frame) L 550

dB @ 7m at 75% Load ≤70

(Specifications are subject to change without prior notice.)
