Diesel Generator

Our generator is a complete and standalone generating set. The alternator and engine are set on a common skid base and enclosed in a solid steel, weatherproof enclosure (weatherproof-type units).

Diesel Generator

PDG-150SSD

Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6

Description

Powercity generators are designed in conformance with European Standards certified by independent certifying agency the Materials Industrial Research and Technology Center (MIRTEC) with certificate number MC/TH-C-269/08. The principles in design, safety, rating and performance are in accordance with European Standards EN 12601:2001, EN 60204-1:2006, EN 60034-1:2004, EN ISO 12100-1:2003 and EN ISO 12100-2:2003. Generators are designed and built to provide electrical power for stand-by or continuous use. Comes with 2 years or 2,000 run hours limited warranty whichever comes first.

  • Compact designed soundproof and weatherproof canopy.
  • All canopy parts are designed with modular principles.
  • Detachable designed doors provide most accessible for maintenance and repairs.
  • All metal canopy parts are factory rustproof using special powder paint coating.
  • Single point lifting eye designed for easy mobilization.
  • Transparent glass control panel viewing window.
  • Optimized ventilation design provides better generator cooling.
  • Provision for external fuel tank for extended operation through fuel intake & return valves.

  • Coolpac Integrated Design – Supplied with cooling package and air cleaner kit for a complete power package.
  • Single Poly Vee belt drive for fan, alternator and water pump, with self-tensioning idler for minimum maintenance.
  • Inline-type Bosch P-Series pump operates at high injection pressures for cleaner combustion and lower emissions.
  • Spin-on fuel filter and full-flow lubricating oil filter.
  • Top mounted Holset HX40W turbo- charger for increased power, fuel economy, and lower smoke and noise levels.

  • Over-rated, brushless, rotating exciter with solid state AVR.
  • Class H winding insulations provide high temperature resistance.
  • Standard degree of protection IP21.
  • Self exciting and self regulating.
  • Factory impregnated epoxy varnished.
  • Heavy duty steel frame cast-iron cover.
  • Stator grease insulation covered.
  • Flywheel location cooling fan.

  • The PLC Generator set controller uses micro-processing intelligent and network technique which can carry out precision measure, constant value adjustment, timing and threshold setting and etc. of multiple digital parameters.
  • Carry out functions including automatic start/stop, data measure, alarms indicates service affecting faults, and compatible with most standard ATS.
  • Uses LCD display, optional Chinese and English display with easy operation, reliable and durable.
  • Parameters can be set in site or in monitor center & can not lose even power off.
  • Easy to replace with a plug-in type socket at the back of the control module and low cost to the end user.
  • Automatic shutdown on fault conditions such us high temp, low oil pressure, over & under speed (RPM), over load & low fuel stock level.
  • Another set of analog gauges for engine status monitoring including un-resettable run hours gauges to prevent tampering.

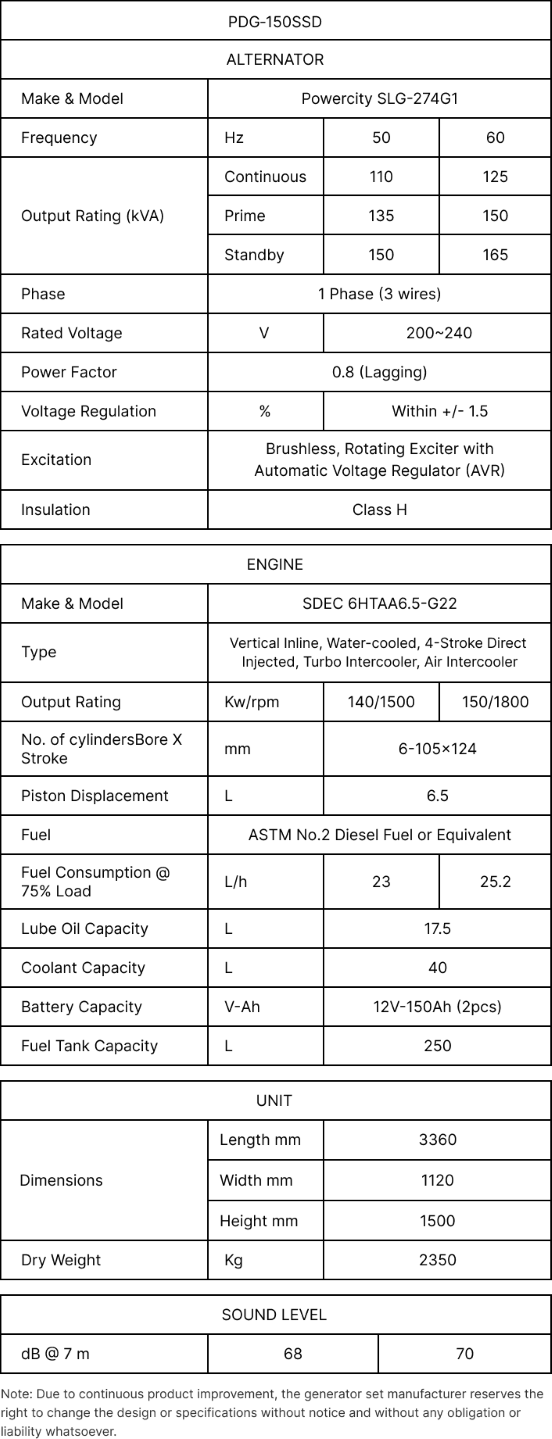

Product Data Sheet
