Soundproof And Weatherproof AC Diesel Generators

Soundproof And Weatherproof AC Diesel Generators

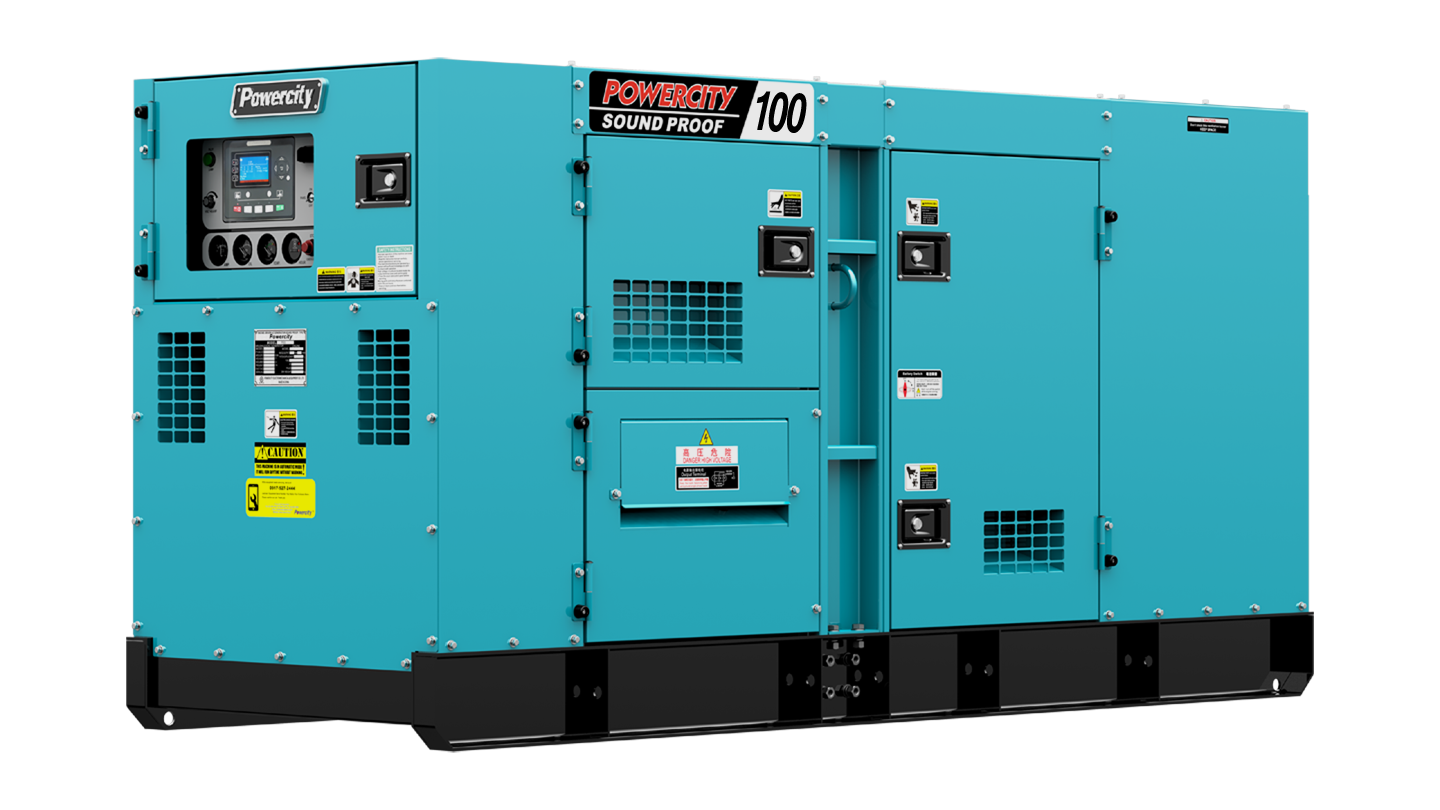

PDG-100SC-CA

Slide 1
Thumbnail 1

Description

  • Compact designed soundproof and weatherproof canopy .
  • All canopy parts are designed with modular principles.
  • Detachable designed doors provide most accessible for maintenance
    and repairs.
  • All metal canopy parts are factory rustproof using special powder
    paint coating.
  • Single point lifting eye designed for easy mobilization.
  • Transparent glass control panel viewing window.
  • Optimized ventilation design provides better generator cooling.
  • Provision for external fuel tank for extended operation through
    fuel intake & return valves.

Model PDG-100SC-CA
Prime Power kVA 100
Standby Power kVA 110
Power Factor 0,8
Rated Voltage V 400/230 or 380/220
Speed rpm 1500
Frequency Hz 50
Fuel Consumption @100% load L/h 24.2
Fuel Consumption @75% load L/h 18.2
Fuel Consumption @50% load L/h 12.5
Fuel Consumption @25% load L/h 7.3

Make & Model POWERCITY SLG-274C
Rated Voltage V 400/230 or 380/220
No. Of Phases – Wires 3 Phase  – 4 Wires
Type Brushless, Rotating Self-Exciter (with A.V.R)
Prime Power 100
Frequency 50
Insulation Class H
Protection lp23
Voltage Regulation % Within +/-1

Brand CUMMINS
Model 6BT5.9-G1
Standby Power (Speed) kW (rpm) 106 (1500)
Type Diesel Engine, 4-Stroke
Injection Direct-injected
Governor Electrical
Compressipon Ratio 17.3 : 1
Aspiration System Turbo-charged
Stater System Electric Motor With Battery
Cooling System Watercooled With Radiator And Fan
Lube Oil Capacity L 16.4
Coolant Capacity (Engine Only) L 7.9

Dimensions (Silent Type) Length mm 2780
Width mm 1000
Height mm 1400
Dry Weight Kg 1700
Fuel Tank Capacity (Base Frame) L 200

db @ 7m at 75% Load ≤70

(Specifications are subject to change without prior notice.)
